■ Package includes

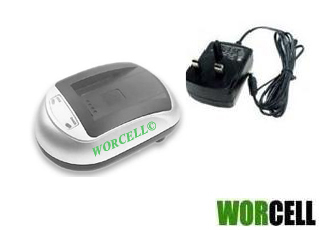

1x Charger
1x Compact Universal Adapter,
1x User Manual.
1x Car Cigarette Lighter Jack Adapter (Optional)
■ Voltage In : 100-240V ( Universal )
■ Charging voltage limit: 4.2V max
■ Charging current limit: 650mA max
■ For batteries rated: 3.6V - 3.7V average
■ Dimension : 106.50 x 69.00 x 33.50 mm
■ Weight: 220.00(g)
■ Color : Silver
■ Fits Panasonic Lumix Series Li-Ion Battery model:
FUJIFILM:
Finepix F20, FinePix F40fd, FinePix F45fd, FinePix F47fd
LEICA:
C-LUX1, D-LUX2, D-LUX3, D-LUX 4
PANASONIC:
DMC-FX01, DMC-FX150EFK, DMC-FX8GN, DMC-FX9EBS, DMC-FX9GN, DMC-LX1GN, DMC-LX3EF-K, Lumix DMC-FS1, Lumix DMC-FS2, Lumix DMC-FX01, Lumix DMC-FX01-A, Lumix DMC-FX01BB, Lumix DMC-FX01BS, Lumix DMC-FX01EB-K, Lumix DMC-FX01EB-S, Lumix DMC-FX01EB-W, Lumix DMC-FX01EF-A, Lumix DMC-FX01EF-K, Lumix DMC-FX01EF-S, Lumix DMC-FX01EF-W, Lumix DMC-FX01EG, Lumix DMC-FX01EG-A, Lumix DMC-FX01EG-K, Lumix DMC-FX01EG-S, Lumix DMC-FX01GK, Lumix DMC-FX01-K , Lumix DMC-FX01-P, Lumix DMC-FX01-S, Lumix DMC-FX01-W, Lumix DMC-FX07, Lumix DMC-FX07EF, Lumix DMC- FX07EF-S, Lumix DMC-FX07EG, Lumix DMC-FX07EGM, Lumix DMC-FX07K, Lumix DMC-FX10, Lumix DMC-FX100EF-K, Lumix DMC-FX100EF-N, Lumix DMC-FX100EF-S, Lumix DMC-FX100EG, Lumix DMC-FX100EG-K, Lumix DMC-FX100EG-S, Lumix DMC-FX100GK, Lumix DMC-FX10A, Lumix DMC-FX10EB-K, Lumix DMC-FX10EB-S, Lumix DMC-FX10EF-S, Lumix DMC-FX10EG, Lumix DMC-FX10EG-A, Lumix DMC-FX10EG-S, Lumix DMC-FX10P, Lumix DMC-FX10S, Lumix DMC-FX12, Lumix DMC-FX12EB-K, Lumix DMC-FX12EB-S, Lumix DMC-FX12EF-S, Lumix DMC-FX12EG, Lumix DMC-FX12EG-K, Lumix DMC-FX12EG-S, Lumix DMC-FX12GK, Lumix DMC-FX12K, Lumix DMC-FX12S, Lumix DMC-FX150, Lumix DMC-FX150EFK, Lumix DMC-FX150K, Lumix DMC-FX150S, Lumix DMC-FX180, Lumix DMC-FX180GK, Lumix DMC-FX180K, Lumix DMC-FX180N, Lumix DMC-FX180S, Lumix DMC-FX3, Lumix DMC-FX3EF, Lumix DMC-FX3EF-S, Lumix DMC-FX3EG, Lumix DMC-FX3EGM, Lumix DMC-FX3EG-S, Lumix DMC-FX3K, Lumix DMC-FX3S, Lumix DMC-FX50, Lumix DMC-FX50EF, Lumix DMC-FX50EG, Lumix DMC-FX50EGM, Lumix DMC-FX50K, Lumix DMC-FX8, Lumix DMC-FX8-A, Lumix DMC-FX8BS, Lumix DMC-FX8EBB, Lumix DMC-FX8EG-A, Lumix DMC-FX8EG-K, Lumix DMC-FX8EG-P, Lumix DMC-FX8EG-S, Lumix DMC-FX8GK, Lumix DMC-FX8GN, Lumix DMC-FX8-K, Lumix DMC-FX8-P, Lumix DMC-FX8-S, Lumix DMC-FX9, Lumix DMC-FX9BB, Lumix DMC-FX9BS, Lumix DMC-FX9EB-K, Lumix DMC-FX9EBS, Lumix DMC-FX9EB-S, Lumix DMC-FX9EF-K, Lumix DMC-FX9EF-S, Lumix DMC-FX9EG, Lumix DMC-FX9EG-K, Lumix DMC-FX9EG-R, Lumix DMC-FX9EG-S, Lumix DMC-FX9GK, Lumix DMC-FX9GN, Lumix DMC-FX9-H, Lumix DMC-FX9-K, Lumix DMC-FX9-R, Lumix DMC-FX9-S, Lumix DMC-LX1, Lumix DMC-LX1BS, Lumix DMC-LX1EG-K, Lumix DMC-LX1EG-S, Lumix DMC-LX1GK, Lumix DMC-LX1GN, Lumix DMC-LX1-K, Lumix DMC-LX1K-B, Lumix DMC-LX1-S, Lumix DMC-LX1S-B, Lumix DMC-LX2, Lumix DMC-LX2EF, Lumix DMC-LX2EF-S, Lumix DMC-LX2EG, Lumix DMC-LX2EG-K, Lumix DMC-LX2EGM, Lumix DMC-LX2EG-S, Lumix DMC-LX2K, Lumix DMC-LX2S, Lumix DMC-LX3, Lumix DMC-LX3EF-K, Lumix DMC-LX3GK, Lumix DMC-LX3K, Lumix DMC-LX3S
RICOH:
Caplio GR Digital, Caplio GR Digital II, Caplio GX100, Caplio R3, Caplio R30, Caplio R4, Caplio R40, Caplio R5, G600, GR Digital III, GX200
SAMSUNG:
HMX-R10
Q: Why is the battery 3.7V and the charger outputs 4.2V?
A: The charger is limited at 4.2V, but does not go to 4.2V immediately when the battery is just plugged in. It first charges the battery at a constant current until the voltage reaches 4.2V. Then, it stays at 4.2V for a few minutes. Then it shuts off and the LED turns green. This is according to Li-Ion charging specifications (optimal voltage is 4.2V, nominal at 3.7V). It is different from Ni-MH or Ni-Cd battery charging. Read our Forum for battery charging tips.
Q: Why would the LED turn red and immediately turn green with my battery?
A: Your battery is "dead". It has lost over 90% of its capacity. This usually happens when you overdischarge the battery too much. Read out Forum for battery usabe tips. You need to get a new battery.
Q: The LED never turns red but my battery works. Is the charger bad?
A: There is a chance the battery terminals do not touch the charger contacts all the way or became dirty. Please, check that. If necessary clean the battery terminals or slightly bend the charger contacts to have a better connection. If this is not the case - then yes, the charger is bad. Generally, these chargers have a very low rate of returns. Less than one in 500.
|
